Glasflügel Kestrel ... 6,80m
(Rumpf, Hauben und Pläne habe ich vom Konstrukteur Herr Dr. W. Hitzler gekauft. Am Rumpf werden ein paar
Dinge abgeändert (Profilanformung, Haubensteg und es wird der Rumpf auf eine lange Haube abgeändert)

Modell: Glasflügel Kestrel
Maßstab: 1:2,5
Spannweite: 6,80m
Profil HLW: HQ/ACRO-0/12
Profil TFL: HQ/DS-2,25/13
Profil TFL: HQ/ACRO-2,5/13 (Mitte des Querruders zum Flächenende straken)
EWD: 1,2°
Gewicht: 18kg






Rumpf

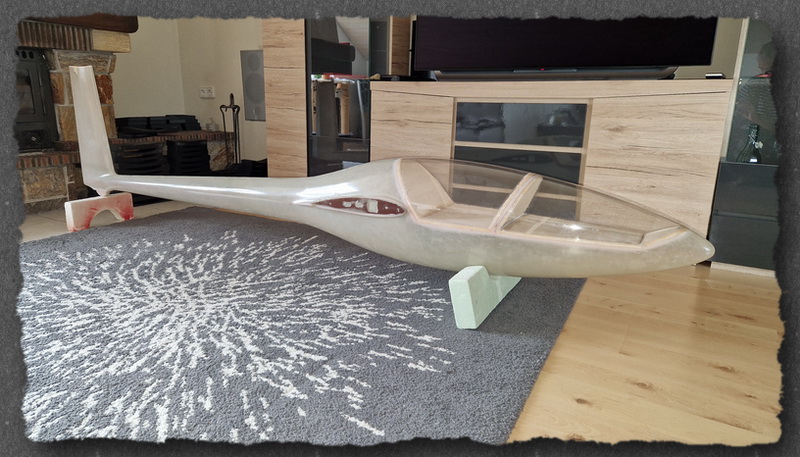

Haubenform

Glasflügel Kestrel 6,80m  - Haube




SLW

Glasflügel Kestrel 6,80m  - HLW




HLW

Glasflügel Kestrel 6,80m  - HLW

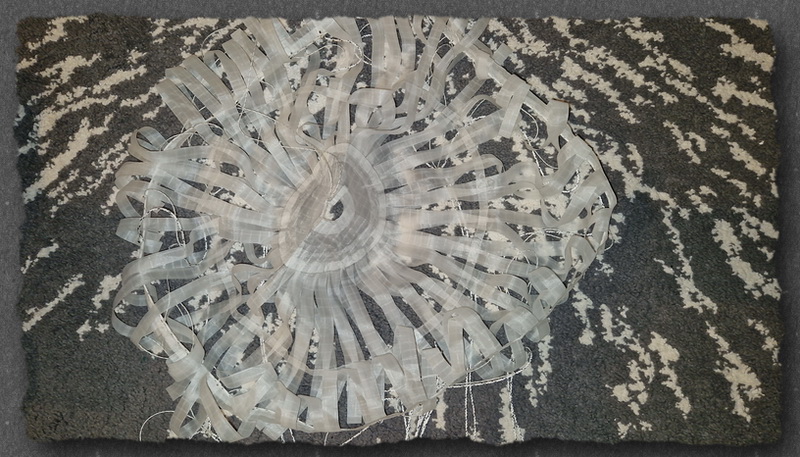

Bremsschirm

Glasflügel Kestrel 6,80m  - BS


Tragflächenform

Glasflügel Kestrel 6,80m  - TFLF

TRAGFLÄCHEN (dauert noch etwas)

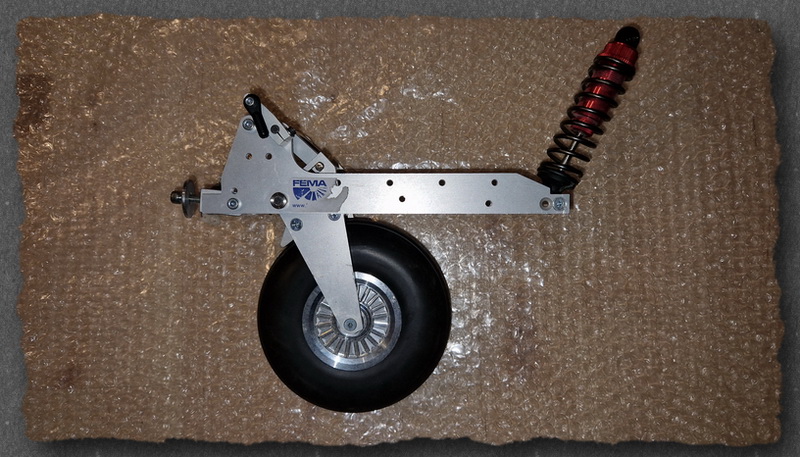

EZFW (dauert noch etwas)

Glasflügel Kestrel 6,80m  - EZFW
